Railway Steel Rail Internationally Common Standard Rail

FOB Reference Price:Get Latest Price

$460.00 - $500.00 / Tons | 5 Ton/Tons (Min. Order)

Contact Supplier

Product Details

Company Profile

Report Suspicious Activity

Overview

Quick Details

Standard:: AISI, ASTM, BS, DIN, GB, JIS

Grade:: U71Mn,900A

Rail Heigth:: 69.85-185.74mm

Bottom Width:: 120-180mm

Web Thickness:: 5.9-44mm

Head Width:: 25-120mm

Length:: 6-12m

Place of Origin:: Hebei, China (Mainland)

Brand Name:: YX

Model Number:: QU70,QU80,QU100,QU120,59R1,59R2,60R1,60R2,A55,A65,A75,A100,A120

Type:: Heavy Rail

Application:: Railway Rail

Weight:: 8.42-118.1KG/M

Secondary Or Not:: Non-secondary

Bolt Hole Diameter:: Customer's Requirement

MOQ:: 5 Tons

Rail Gauge:: Normal Gauge

Product name:: Railway

Usage:: Mining Rail,Passenger Rail,Crane Rail

Holes:: Drilled Holes

Heat-treatment:: Yes

Sample:: Available upon request

Certificate:: ISO9001-2008;ISO14001:2004

OEM service:: Accept

Deliverytime:: Within 30 days

Supply Ability

Supply Ability:: 10 Ton/Tons per Week OEM/ODM are ok

Packaging & Delivery

Packaging Details: bulk packing or according to customers' request

Port: TianJin or Shanghai

Lead Time :: Shipped within 30 days after payment

Product Description

Railway Steel Rail Internationally Common Standard Rail

Crane Steel Rail

Size	Dimension(mm)				Weight(kg/m）	Material	Length(m)
Size	Head	Height	Bottom	Web	Weight(kg/m）	Material	Length(m)
QU70	70	120	120	28	52.8	U71Mn	12
QU80	80	130	130	32	63.69	U71Mn	12
QU100	100	150	150	38	88.96	U71Mn	12
QU120	120	170	170	44	118.1	U71Mn	12

Size	Dimension(mm)							Weight(kg/m)
Size	Height	Bottom	Head A	Head B	Channel A	Channel B	Web	Weight(kg/m)
59R1	180	180	113	56	42	15	12	58.97
59R2	180	180	113	55.83	42.52	14.65	12	58.14
60R1	180	180	113	56	36	21	12	60.59
60R2	180	180	113	55.83	36.34	20.83	12	59.75

International Common Steel Rail

Size	Dimension(mm)				Weight(kg/m）	Material	Length(m)
Size	Head	Height	Bottom	Web	Weight(kg/m）	Material	Length(m)
A55	55	65	150	31	31.8	900A	10-12
A65	65	75	175	38	43.1	900A	10-12
A75	75	85	200	45	56.2	900A	10-12
A100	100	95	200	60	74.3	900A	10-12
A120	120	105	220	72	100	900A	10-12

Product Show

Related Products

Other railway products we can supplier such as following:
1. Elastic Rail Clip and Clamp, SKL clip, Pandrol E Clip, Deenik clip, Fastclip, Fist clip;
2.Turnbuckle;
3. Plastic Dowel/screw dowel;
4. Track Bolt with Nut;
5. Rail Base (Tie) Plate;
6. Rail Fish Plate, Fish Bolt, nut and washers;
7. Railway Shoulder (Insert);
8. Railroad Rubber and EVA Pad;
9. Rail spring washer, Rail plain washer;
10. Rail Clamp plate;
11. Train Block shoe/ Brake block;
12. Rail Anchor;
13. Rail Shoulder;
14. Steel Rail;
15. Steel Sleeper.

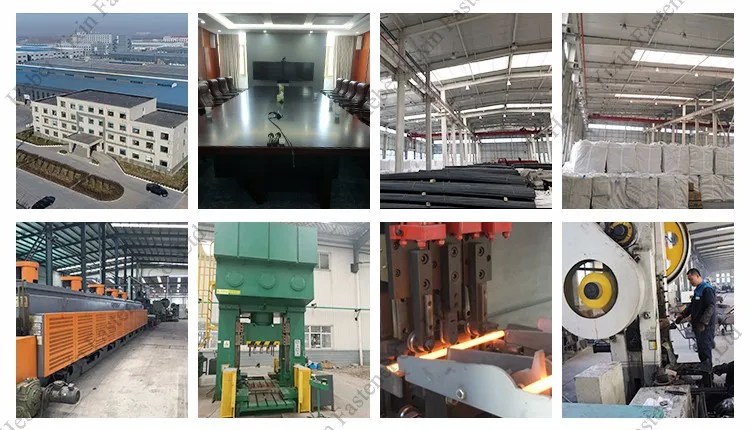

Our Company

Hebei YiXin Fastener Co., Ltd. specialize in manufacturing all kinds of rail fasteners. The main products includes:Steel Rail， Bolts,，Screw Spikes， Turnbuckle，High Strength Bolts and Nuts，Tunnel Bolt，Washers，Clips，Rail Tie Plat etc for Railway, Metro, Iron Towers in the field of power industry.

We have abundant technical force,technology innovation,scientific management,and good management.We welcome all interested companies and people contact us for business discussion.We hope to establish a long-term relationship with you for common growth and success.

Process Quality Control

1,Make proper designing of mould precisely to ensure dimensions of product qualified.
2,Strictly control the production temperature to ensure well-distributed temperature.

3,Inspect dimensions of product and surface quality at regular .

Packing & Delivery

The Exhibition Show

Certificate

FAQ

Q: What materials should we offer for quotation?
A: Your own design drawings,specifications,materials,quantities,surface treatment,etc.
Q: How about the payment terms?
A: T/T,T/C,negotiable.
Q: Can you offer samples?
A:Yes,we’ll provide samples as your requirements.
Q:How do you control your quality?
A:Selection of high-quality steel material from famous steel group
Production process standardization, process standardization, refinement.
100% Finished Product Testing.
The third party product inspections are acceptable.
ISO Quality Management System Certificated Factory
Inspection before loading
Q: Why choose us?
A: Best price,leading manufacture,strict quality management system and excellent services will be the guarantee for your business.
